CNC Busbar Bending Machine combines bending, cutting, and punching unit together; three units can operate at the same time as controlled by three pumps. bending unit is controlled by PLC, its Usage and main features please find below.

Usage for CNC Busbar Bending Machine

is a special machine for cutting, bending, and punching on aluminum and copper bus bars.

Main features

It combines punching, bending, and cutting together as well as some other functions such as embossing, twisting, flattening, pressing tie-in, etc.

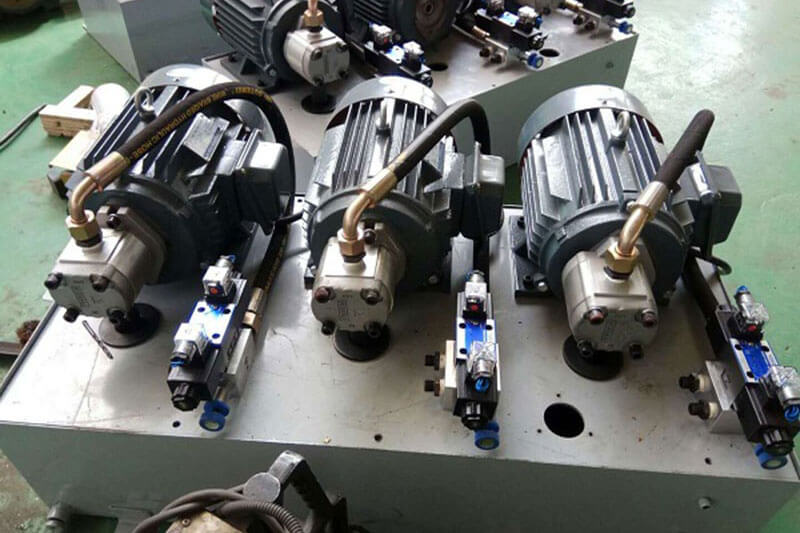

Three electric motors and pumps make sure that workers can operate the cutting unit, punching unit, and bending unit at the same time.

1.Cuttingunit: it uses punch shearing, the incision interface is flat, no droop and burrs and waste, beautiful shape.

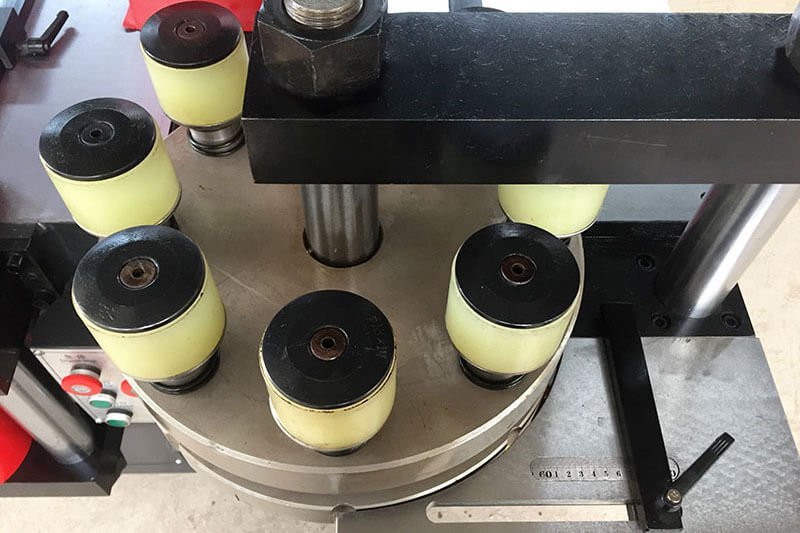

2.Punching unit: uses a united four-mode turn plate in tooth shape to make sure the upper mold and the lower mold are absolutely in the same center, improving the mold concentricity and lengthening the working life. The turnplate is in tooth shape with a good view and high strength. No need to frequently change molds, labor intensity is highly reduced. It is easy and quick to use.

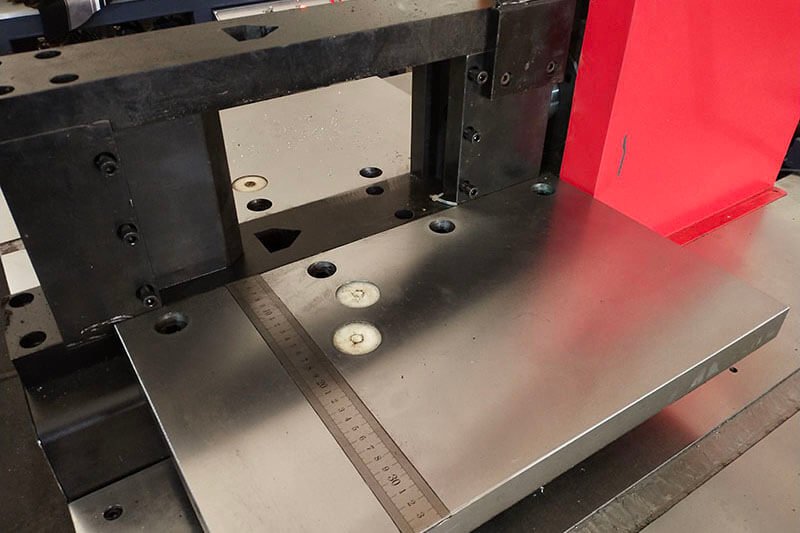

Producing efficiency is obviously higher than a traditional one. Newest update: add a table with the ruler on the punching unit, it is much easier to confirm punching position.

3.Bending unit:

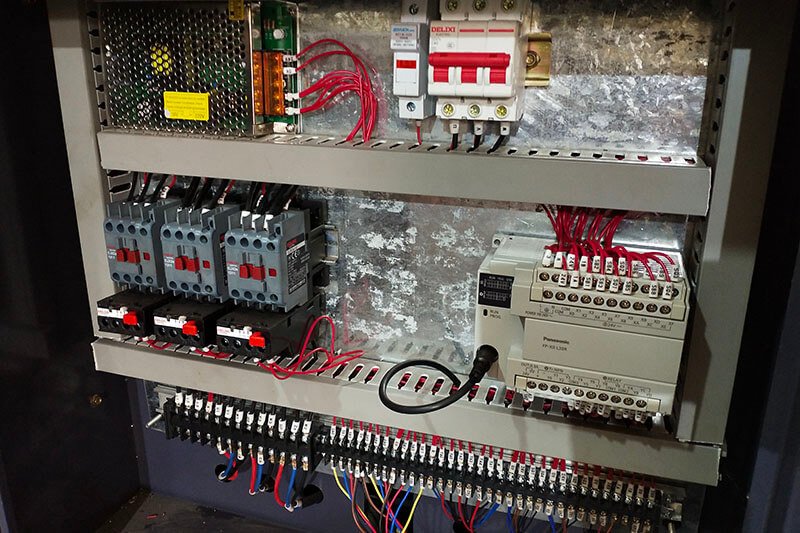

CNC PLC control system just inputs an angle on the touch screen, it can be bending automatically. Angle bending accuracy: +/- 1°

‚double worktable. ensures three-unit can real working at the same time.

NameZTMX-303K
PunchingMax power (KN)300
Punching Diameter (mm)Ф4.3-Ф25
Max thickness (mm)12
Max width (mm)160
ShearingMax thickness (mm)12
Max width (mm)160
BendingMax power (KN)300
Max width (mm)160
Max thickness (mm)12
Vertical BendingMax width (mm)100(10mm thick copper)
Min. bending angle degree90°
Embossing
Pressing Cable Joint
Twisting
Outline Dimensions1300x1000x900
Main motor power (KW)3×4
