Project Description
FOB Qingdao Price | $5,500.00 – $6,000.00/ Set |
---|---|
MOQ | 1 |
Lead time | 15 days |
Warranty | 12 Months |
DGWMX series Busbar Processing Machine combines bending, cutting, and punching unit together;
three units can operate at the same time as controlled by three pumps. its Usage and main features please find below.
Usage for DGWMX series Busbar Processing Machine
is a special machine for cutting, bending, and punching on aluminum and copper bus bars.
Main features

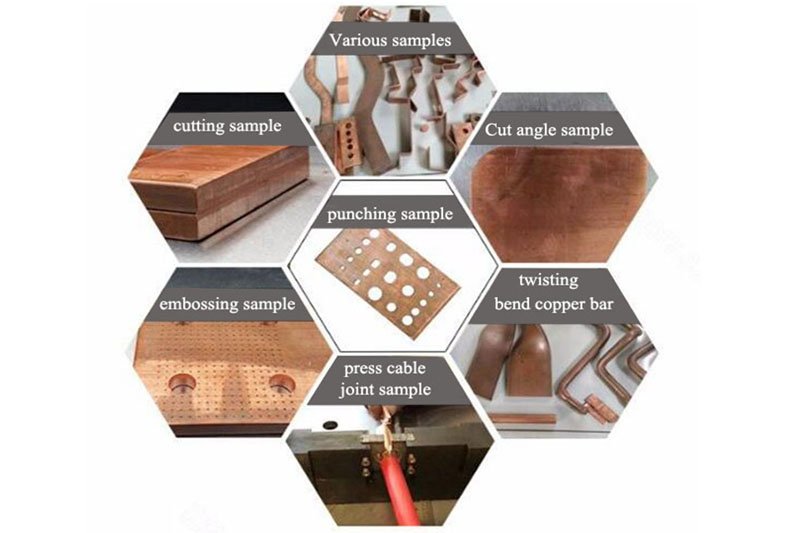

DGWMX series busbar Machines combine punching, bending, and cutting together as well as some other functions such as embossing, twisting, flattening, pressing tie-in, etc.
Three electric motors and pumps make sure that workers can operate the cutting unit, punching unit, and bending unit at the same time.
1. Cuttingunit: it uses punch shearing, the incision interface is flat, no droop and burrs and waste, beautiful shape.
2. Punching unit: uses a united four/ six-mode turn plate in tooth shape to make sure the upper mold and the lower mold are absolutely in the same center, improving the mold concentricity and lengthening the working life. The turnplate is in tooth shape with a good view and high strength. No need to frequently change molds, labor intensity is highly reduced. It is easy and quick to use.

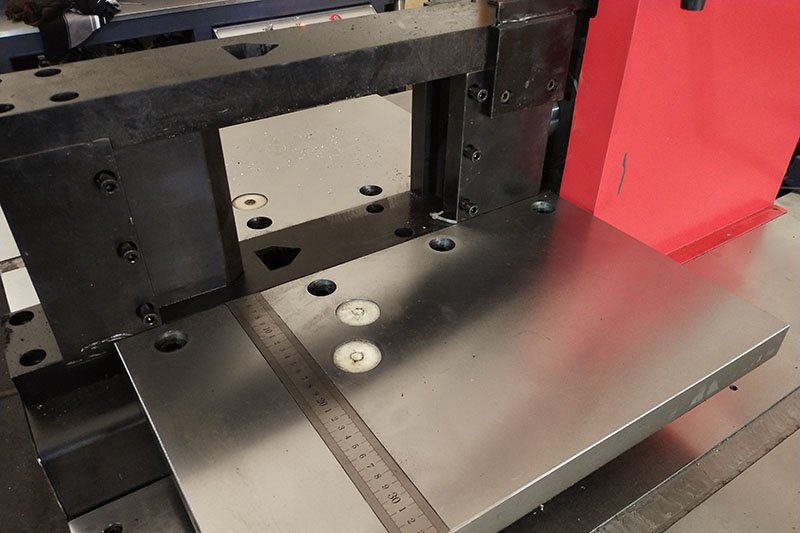

Producing efficiency is obviously higher than a traditional one. Newest update: add a table with a ruler on the punching unit, it is much easier to confirm the punching position.
3. Bending unit:
double worktable. ensures three-unit can real working at the same time.
DGWMX-303D | ||
Punching | Max power | 300 |
Punching Diameter(mm) | Ф4.3-Ф25 | |
Max thickness(mm) | 12 | |
Shearing | Max thickness(mm) | 12 |
Max width (mm) | 150 | |
Bending | Max power | 300KN |
Max width (mm) | 150 | |
Vertical Bending | Max width (mm) | 100 |
Embossing | √ | |
Pressing Cable Joint | √ | |
Twisting | √ | |
Number of motors | 3 ×4kw | |
Outline dimension | 1750×1350×1260mm | |
Weight | 1400kg |
5.included mold list:
No. | Name | Unit | quantity |
1 | Punching mold | Set | 4 |
2 | Cutting mold | Set | 1 |
3 | bending mold | Sets | 2 |
5 | Embossing mold | Set | 1 |
