Project Description

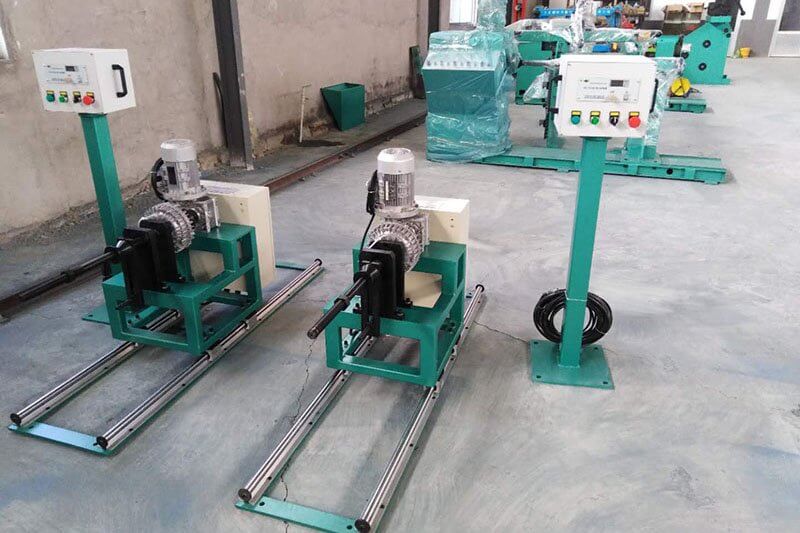

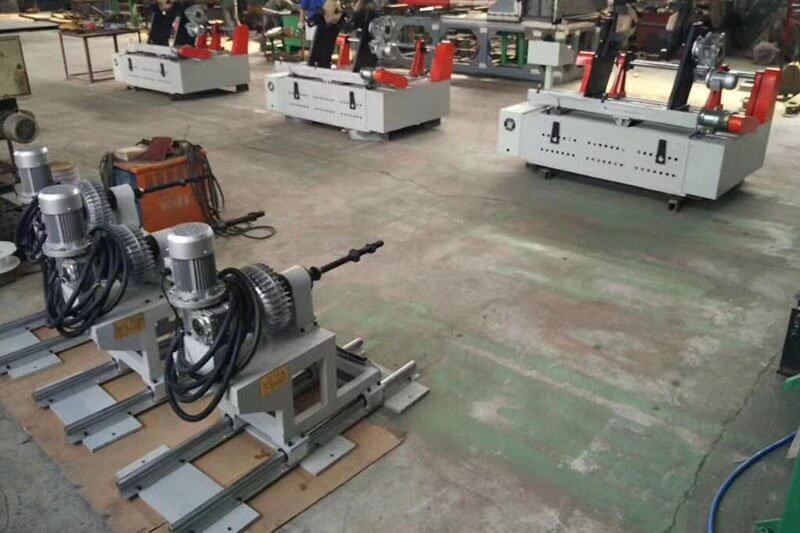

Application for Electric Wire Decoiler

It is used for feeding wires of coil winding machine. The tension is controlled by an electric motor. tension size can be adjusted

Advantage than pneumatic control:

  1. Tension power much stronger
  2. Support wire unwinding
  3. Dereeler will be moved freely on slideway with wire winding.

Main component for Electric Wire Decoiler:

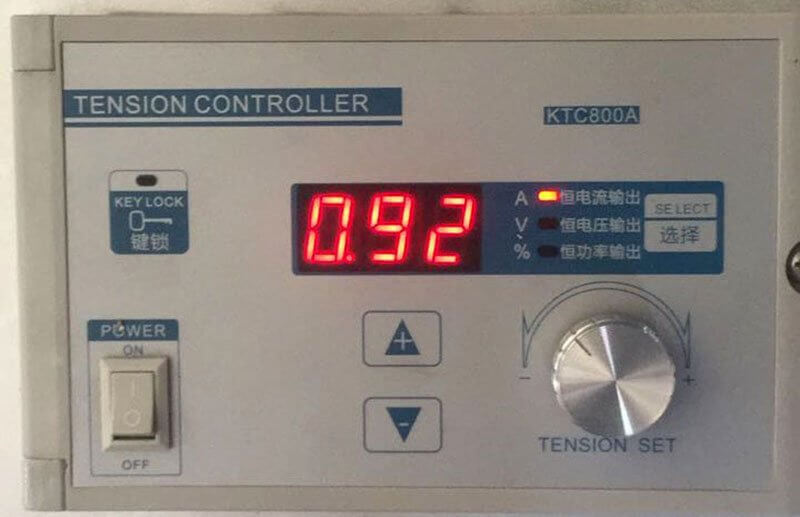

Tension controller

Slideway

Motor

Wire shaft

Magnetic powder clutch

Main technical parameter:

De-reeler Bearing shaft28×450mm
outer diameter of wire coilLess than 700mm
Tension50N
Tension ControlElectric adjustable
Moving length of slideway800mm
Power0.75KW

Pls be noted all parameter can be changed easily with your requirement.

$1,000.00 – $6,500.00 / Set | 1 Set/Sets (Min. Order)

Shipping:Support Sea freight
Lead Time:
Quantity(Sets)1 – 1>1
Est. Time(days)30Negotiable

After-sales Service Provided:Field maintenance and repair service, Field installation
