Project Description

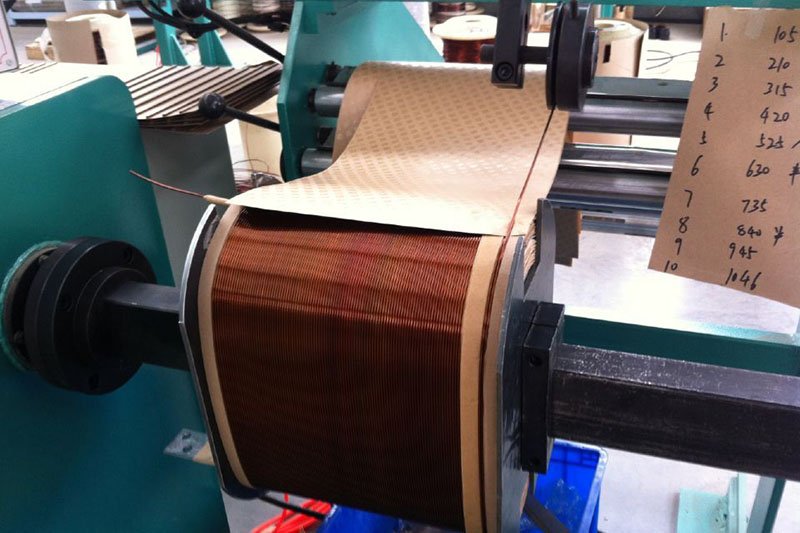

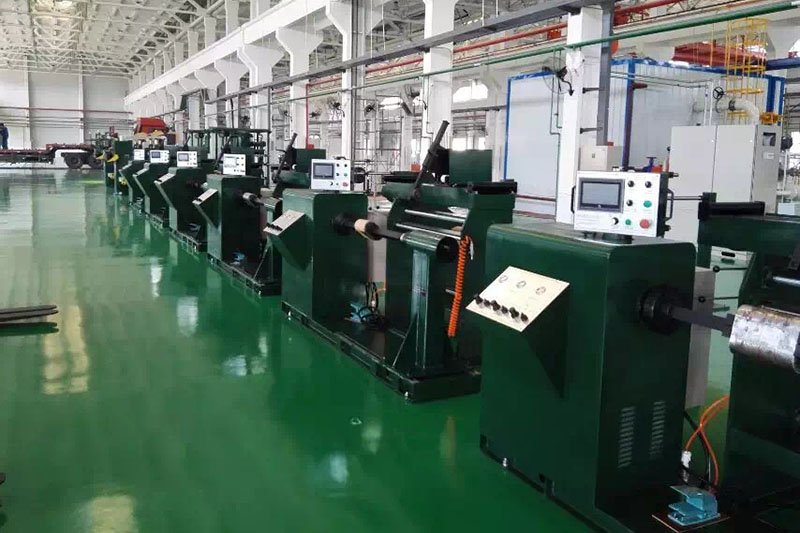

Transformer Coil Winding Machine combines winding host, wire guider, and wire decoiler. used in distribution transformers and Reactor. suitable for round or rectangular wire winding to round, oval, or rectangle coil. there are four standard types of Transformer winding machines, you can find the right machine for almost all needs. We also provide customized coil winders built to customer requirements.

Features

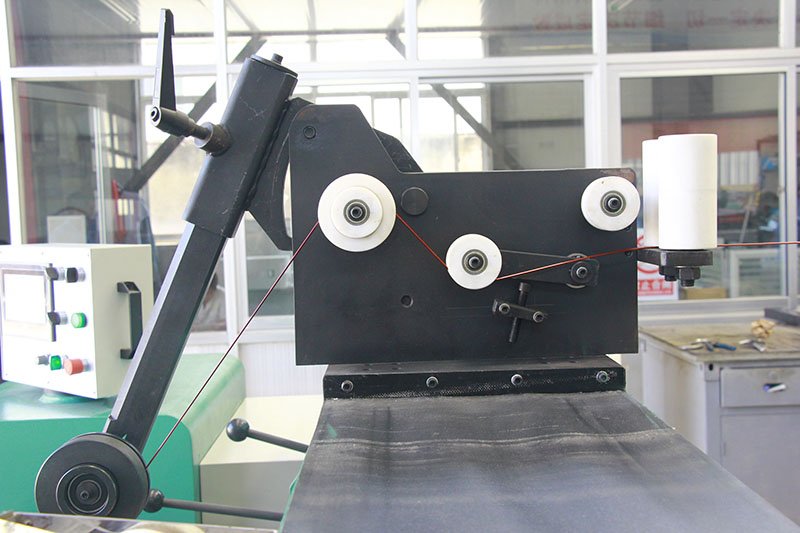

1.with automatic wire guider makes sure that wire displacement synchronous with winding, guarantee minimum 0.01mm gap between each turn.

2.Max.speed can be 550rpm, speed improving 30%-200%

3.PLC control, just setting wire pitch and stopping at the desired turns.

Composition

winding host

automatic wire guider

insulation layer decoiler

round wire decoiler

Two-axis flat wire decoiler with air brake

PLC control

Operation touch screen

Pneumatic system and foot pedal

ModelGRX-800
Machine packed size2600×2180×1900mm
Machine whole Weight1500kg
Power supply3 phase 380V,50HZ or make for customer local voltage
Whole power5 KW
Coil
Coil diameter80-600mm
Coil width (Max)800mm
Coil weight(Max)500kg
Coil cross sectionRound,oval,rectangle
Conductors
Round wire diameterΦ0.3mm—Φ3mm
Flat wire3×12mm
Winding shaft
Speed adjustment methodFrequency stepless control
Rotation speed (Max)240rpm or 450rpm
Torque300Nm
Traverse typeAC Servo Motor driven with ball screw
Wire traverse width700mm

Transformer Coil Winding Machine Price

  • USD9000 – 13500 / Set FOB QINGDAO
  • MOQ: 1 Set
  • Shipping: Support Sea
  • lead Time: 30 DAYS for 1 Set
  • Warranty: 1 Year
