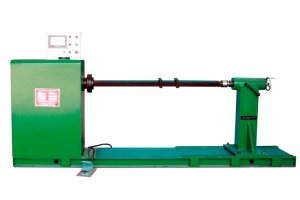

Low Voltage Transformer Coil Winder

  • It is suitable for winding Primary coils of transformer and reactor from 0.5tons to 10 tons;
  • the whole machine is composed of a winding host, PLC control system, man-machine interface, etc.
  • This machine adopts a hard fabric gear mechanical speed change system, high efficiency, noise is lower than 60db.
  • The motor has an electromagnetic braking function, which is sensitive and reliable.
  • Electric adopts frequency conversion stepless speed regulation, the speed is shown on the touch screen, 0-60rpm can be adjusted arbitrarily.
  • the desktop control box is located on the upper part of the winding main box, easy to use, simple and clear interface
  • Shuohao Also Produce HV Coil Winding Machine, Foil Winding Machine, Busbar Machine, etc.

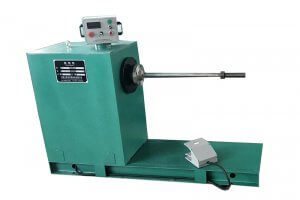

Transformer Coil Winder

Transformer Coil Winder MODEL RX-05

suitable for winding distribution transformer BELOW 315KVA, motors, and small coils NOT more than 500KG. Frequency conversion speed regulation winding machine, Constant torque wire winding machine. These coil winding machines allow the user to set the number of turns he need on the screen.

LV Winding Machine

MODEL RX-1

suitable for winding distribution transformer BELOW 1600KVA, motors, and small coils NOT more than 1000KG. Constant torque with Frequency conversion speed regulation. Controlled acceleration from zero to full speed prevents shock loads. You can control speed by footswitch or touch screen.  Medium duty coil winding machines can wind round or flat wire.  can wind to round, oval, and rectangle shape coil.

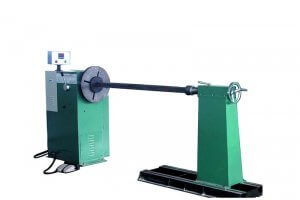

Transformer Winder

MODEL JX-1

suitable for winding distribution transformer BELOW 1600KVA, motors, and small coils NOT more than 1000KG. adopts mechanical shifting speed and frequency conversion speed regulation.  Ensure the whole equipment startup process smooth and braking accurate and reliable.It use copper worm gear casting gearbox, large torque, self-locking when power off.

LV Coil Winding Machine

MODEL RX-2

suitable for winding distribution transformer BELOW 3150KVA, motors, and small coils NOT more than 2000KG. Ten or twenty coil drawing can be saved on this unit, it is very convenient for the operator to enter different drawing according to the type of coil being wound.

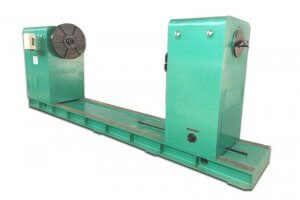

Horizontal Coil Winding Machine

MODEL RX-3

suitable for winding distribution transformer BELOW 20,000KVA, motors, and small coils NOT more than 3000KG.The main box and the base are integrated. It is easy for installation.RX-3 Coil Winding Machine adopted a chain and gear drive to guarantee smooth starting, fast and flexible braking.

Distribution Transformer Winding Machine

MODEL RX-5

suitable for winding distribution transformer BELOW 63,000KVA, motors, and small coils NOT more than 5000KG. Perfect for customers winding paper covered flat wire and large heavy coils.The Frequency converter offers you soft, smooth starting and stopping. Motor Power up to 7.5kw.consists of a counter powerful winding machine with memory and digital correspond with PLC.Ten or twenty coil drawing can be saved on coil winding machine.
